语义解析作为自然语言处理的重要方面，其主要作用如下：在词的层次上，语义分析的基本任务是进行词义消歧；在句子层面上，语义角色标注是所关心的问题；在文章层次上，指代消解、篇章语义分析是重点。
而实体识别和关系抽取是构建知识图谱等上层自然语言处理应用的基础。关系抽取可以简单理解为一个分类问题：给定两个实体和两个实体共同出现的句子文本，判别两个实体之间的关系。
使用CNN或者双向RNN加Attention的深度学习方法被认为是现在关系抽取state of art的解决方案。已有的文献和代码，大都是针对英文语料，使用词向量作为输入进行训练。这里以实践为目的，介绍一个用双向GRU、字与句子的双重Attention模型，以天然适配中文特性的字向量(characterembedding)作为输入，网络爬取数据作为训练语料构建的中文关系抽取模型。代码主要是基于清华的开源项目thunlp/TensorFlow-NRE开发，其中效果如下：
实验前的准备
首先，我们使用的python版本是3.6.5所用到的模块如下：
tensorflow模块：用来创建整个模型训练和保存调用以及网络的搭建框架等等。
numpy模块：用来处理数据矩阵运算。
Sklearn模块：是一些机器学习算法的集成模块。
模型的网络搭建

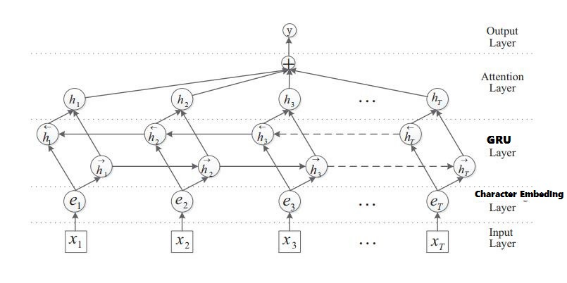

其中模型的网络图如下：
双向GRU加字级别attention的模型想法来自文章 “Attention-Based Bidirectional Long Short-Term Memory Networks for Relation Classification” [Zhou et al.,2016]。这里将原文的模型结构中的LSTM改为GRU，且对句子中的每一个中文字符输入为character embedding。这样的模型对每一个句子输入做训练，加入字级别的attention。
句子级别attention的想法来自文章 “Neural Relation Extraction with Selective Attention over Instances” [Lin et al.,2016]。原文模型结构图如下，这里将其中对每个句子进行encoding的CNN模块换成上面的双向GRU模型。这样的模型对每一种类别的句子输入做共同训练，加入句子级别的attention。
建立network.py文件，定义词向量大小、步数、类别数等等：
def__init__(self):
self.vocab_size = 16691
self.num_steps = 70
self.num_epochs = 10
self.num_classes = 12
self.gru_size = 230
self.keep_prob = .5
self.num_layers = 1
self.pos_size = 5
self.pos_num = 123
# the number of entity pairs of each batch during training or testing
self.big_num = 50
然后建立GRU网络。按照所给出的网络模型图，定义出网络基本框架作为具体参数的调用：
def__init__(self, is_training, word_embeddings, settings):
self.num_steps = num_steps = settings.num_steps
self.vocab_size = vocab_size = settings.vocab_size
self.num_classes = num_classes = settings.num_classes
self.gru_size = gru_size = settings.gru_size
self.big_num = big_num = settings.big_num
self.input_word = tf.placeholder(dtype=tf.int32, shape=[None, num_steps], name='input_word')
self.input_pos1 = tf.placeholder(dtype=tf.int32, shape=[None, num_steps], name='input_pos1')
self.input_pos2 = tf.placeholder(dtype=tf.int32, shape=[None, num_steps], name='input_pos2')
self.input_y = tf.placeholder(dtype=tf.float32, shape=[None, num_classes], name='input_y')
self.total_shape = tf.placeholder(dtype=tf.int32, shape=[big_num + 1], name='total_shape')
total_num = self.total_shape[-1]
word_embedding = tf.get_variable(initializer=word_embeddings, name='word_embedding')
pos1_embedding = tf.get_variable('pos1_embedding', [settings.pos_num, settings.pos_size])
pos2_embedding = tf.get_variable('pos2_embedding', [settings.pos_num, settings.pos_size])
attention_w = tf.get_variable('attention_omega', [gru_size, 1])
sen_a = tf.get_variable('attention_A', [gru_size])
sen_r = tf.get_variable('query_r', [gru_size, 1])
relation_embedding = tf.get_variable('relation_embedding', [self.num_classes, gru_size])
sen_d = tf.get_variable('bias_d', [self.num_classes])
gru_cell_forward = tf.contrib.rnn.GRUCell(gru_size)
gru_cell_backward = tf.contrib.rnn.GRUCell(gru_size)
if is_training and settings.keep_prob 1:
gru_cell_forward = tf.contrib.rnn.DropoutWrapper(gru_cell_forward, output_keep_prob=settings.keep_prob)
gru_cell_backward = tf.contrib.rnn.DropoutWrapper(gru_cell_backward, output_keep_prob=settings.keep_prob)
cell_forward = tf.contrib.rnn.MultiRNNCell([gru_cell_forward] * settings.num_layers)
cell_backward = tf.contrib.rnn.MultiRNNCell([gru_cell_backward] * settings.num_layers)
sen_repre = []
sen_alpha = []
sen_s = []
sen_out = []
self.prob = []
self.predictions = []
self.loss = []
self.accuracy = []
self.total_loss = .
self._initial_state_forward = cell_forward.zero_state(total_num, tf.float32)
self._initial_state_backward = cell_backward.zero_state(total_num, tf.float32)
# embedding layer
inputs_forward = tf.concat(axis=2, values=[tf.nn.embedding_lookup(word_embedding, self.input_word),
tf.nn.embedding_lookup(pos1_embedding, self.input_pos1),
tf.nn.embedding_lookup(pos2_embedding, self.input_pos2)])
inputs_backward = tf.concat(axis=2,
values=[tf.nn.embedding_lookup(word_embedding, tf.reverse(self.input_word, [1])),
tf.nn.embedding_lookup(pos1_embedding, tf.reverse(self.input_pos1, [1])),
tf.nn.embedding_lookup(pos2_embedding,
tf.reverse(self.input_pos2, [1]))])
outputs_forward = []
state_forward = self._initial_state_forward
# Bi-GRU layer
with tf.variable_scope('GRU_FORWARD') as scope:
for step in range(num_steps):
if step > :
scope.reuse_variables()
(cell_output_forward, state_forward) = cell_forward(inputs_forward[:, step, :], state_forward)
outputs_forward.append(cell_output_forward)
outputs_backward = []
state_backward = self._initial_state_backward
with tf.variable_scope('GRU_BACKWARD') as scope:
for step in range(num_steps):
if step > :
scope.reuse_variables()
(cell_output_backward, state_backward) = cell_backward(inputs_backward[:, step, :], state_backward)
outputs_backward.append(cell_output_backward)
output_forward = tf.reshape(tf.concat(axis=1, values=outputs_forward), [total_num, num_steps, gru_size])
output_backward = tf.reverse(
tf.reshape(tf.concat(axis=1, values=outputs_backward), [total_num, num_steps, gru_size]), [1])
# word-level attention layer
output_h = tf.add(output_forward, output_backward)
attention_r = tf.reshape(tf.matmul(tf.reshape(tf.nn.softmax(
tf.reshape(tf.matmul(tf.reshape(tf.tanh(output_h), [total_num * num_steps, gru_size]), attention_w),
[total_num, num_steps])), [total_num, 1, num_steps]), output_h), [total_num, gru_size])
模型的训练和使用
其中用来训练的语料获取，由于中文关系抽取的公开语料比较少。我们从distant supervision的方法中获取灵感，希望可以首先找到具有确定关系的实体对，然后再去获取该实体对共同出现的语句作为正样本。负样本则从实体库中随机产生没有关系的实体对，再去获取这样实体对共同出现的语句。
对于具有确定关系的实体对，我们从复旦知识工厂得到，感谢他们提供的免费API！一个小问题是，相同的关系label在复旦知识工厂中可能对应着不同的标注，比如“夫妻”，抓取到的数据里有的是“丈夫”，有的是“妻子”，有的是“伉俪”等等，需要手动对齐。
（1） 模型的训练：
建立train_GRU文件，通过训练已经经过处理后得到的npy文件进行训练。

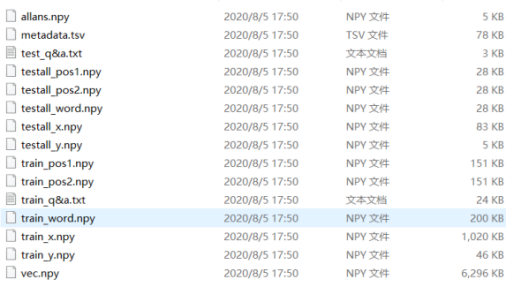

其中训练的数据如下：
代码如下：
def main(_):
# the path to save models
save_path = './model/'
print('reading wordembedding')
wordembedding = np.load('./data/vec.npy')
print('reading training data')
train_y = np.load('./data/train_y.npy')
train_word = np.load('./data/train_word.npy')
train_pos1 = np.load('./data/train_pos1.npy')
train_pos2 = np.load('./data/train_pos2.npy')
settings = network.Settings()
settings.vocab_size = len(wordembedding)
settings.num_classes = len(train_y[])
big_num = settings.big_num
with tf.Graph().as_default():
sess = tf.Session()
with sess.as_default():
initializer = tf.contrib.layers.xavier_initializer()
with tf.variable_scope("model", reuse=None, initializer=initializer):
m = network.GRU(is_training=True, word_embeddings=wordembedding, settings=settings)
global_step = tf.Variable(, name="global_step", trainable=False)
optimizer = tf.train.AdamOptimizer(0.0005)
train_op = optimizer.minimize(m.final_loss, global_step=global_step)
sess.run(tf.global_variables_initializer())
saver = tf.train.Saver(max_to_keep=None)
merged_summary = tf.summary.merge_all()
summary_writer = tf.summary.FileWriter(FLAGS.summary_dir + '/train_loss', sess.graph)
def train_step(word_batch, pos1_batch, pos2_batch, y_batch, big_num):
feed_dict = {}
total_shape = []
total_num =
total_word = []
total_pos1 = []
total_pos2 = []
for i in range(len(word_batch)):
total_shape.append(total_num)
total_num += len(word_batch[i])
for word in word_batch[i]:
total_word.append(word)
for pos1 in pos1_batch[i]:
total_pos1.append(pos1)
for pos2 in pos2_batch[i]:
total_pos2.append(pos2)
total_shape.append(total_num)
total_shape = np.array(total_shape)
total_word = np.array(total_word)
total_pos1 = np.array(total_pos1)
total_pos2 = np.array(total_pos2)
feed_dict[m.total_shape] = total_shape
feed_dict[m.input_word] = total_word
feed_dict[m.input_pos1] = total_pos1
feed_dict[m.input_pos2] = total_pos2
feed_dict[m.input_y] = y_batch
temp, step, loss, accuracy, summary, l2_loss, final_loss = sess.run(
[train_op, global_step, m.total_loss, m.accuracy, merged_summary, m.l2_loss, m.final_loss],
feed_dict)
time_str = datetime.datetime.now().isoformat()
accuracy = np.reshape(np.array(accuracy), (big_num))
acc = np.mean(accuracy)
summary_writer.add_summary(summary, step)
if step % 50 == :
tempstr = "{}: step {}, softmax_loss {:g}, acc {:g}".format(time_str, step, loss, acc)
print(tempstr)
for one_epoch in range(settings.num_epochs):
temp_order = list(range(len(train_word)))
np.random.shuffle(temp_order)
for i in range(int(len(temp_order) / float(settings.big_num))):
temp_word = []
temp_pos1 = []
temp_pos2 = []
temp_y = []
temp_input = temp_order[i * settings.big_num:(i + 1) * settings.big_num]
for k in temp_input:
temp_word.append(train_word[k])
temp_pos1.append(train_pos1[k])
temp_pos2.append(train_pos2[k])
temp_y.append(train_y[k])
num =
for single_word in temp_word:
num += len(single_word)
if num > 1500:
print('out of range')
continue
temp_word = np.array(temp_word)
temp_pos1 = np.array(temp_pos1)
temp_pos2 = np.array(temp_pos2)
temp_y = np.array(temp_y)
train_step(temp_word, temp_pos1, temp_pos2, temp_y, settings.big_num)
current_step = tf.train.global_step(sess, global_step)
if current_step > 8000and current_step % 100 == :
print('saving model')
path = saver.save(sess, save_path + 'ATT_GRU_model', global_step=current_step)
tempstr = 'have saved model to ' + path
print(tempstr)
训练过程：

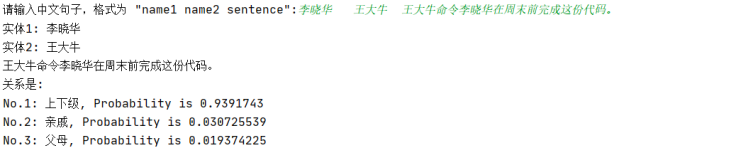

（2） 模型的测试：

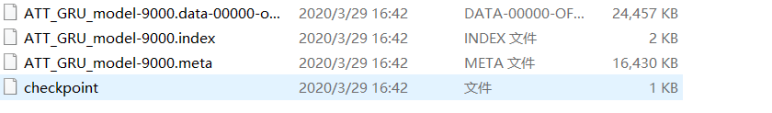

其中得到训练后的模型如下：
whileTrue:
#try:
#BUG: Encoding error if user input directly from command line.
line = input('请输入中文句子，格式为 "name1 name2 sentence":')
#Read file from test file
'''
infile = open('test.txt', encoding='utf-8')
line = ''
for orgline in infile:
line = orgline.strip()
break
infile.close()
'''
en1, en2, sentence = line.strip().split()
print("实体1: " + en1)
print("实体2: " + en2)
print(sentence)
relation =
en1pos = sentence.find(en1)
if en1pos == -1:
en1pos =
en2pos = sentence.find(en2)
if en2pos == -1:
en2post =
output = []
# length of sentence is 70
fixlen = 70
# max length of position embedding is 60 (-60~+60)
maxlen = 60
#Encoding test x
for i in range(fixlen):
word = word2id['BLANK']
rel_e1 = pos_embed(i - en1pos)
rel_e2 = pos_embed(i - en2pos)
output.append([word, rel_e1, rel_e2])
for i in range(min(fixlen, len(sentence))):
word =
if sentence[i] notin word2id:
#print(sentence[i])
#print('==')
word = word2id['UNK']
#print(word)
else:
#print(sentence[i])
#print('||')
word = word2id[sentence[i]]
#print(word)
output[i][] = word
test_x = []
test_x.append([output])
#Encoding test y
label = [for i in range(len(relation2id))]
label[] = 1
test_y = []
test_y.append(label)
test_x = np.array(test_x)
test_y = np.array(test_y)
test_word = []
test_pos1 = []
test_pos2 = []
for i in range(len(test_x)):
word = []
pos1 = []
pos2 = []
for j in test_x[i]:
temp_word = []
temp_pos1 = []
temp_pos2 = []
for k in j:
temp_word.append(k[])
temp_pos1.append(k[1])
temp_pos2.append(k[2])
word.append(temp_word)
pos1.append(temp_pos1)
pos2.append(temp_pos2)
test_word.append(word)
test_pos1.append(pos1)
test_pos2.append(pos2)
test_word = np.array(test_word)
test_pos1 = np.array(test_pos1)
test_pos2 = np.array(test_pos2)
prob, accuracy = test_step(test_word, test_pos1, test_pos2, test_y)
prob = np.reshape(np.array(prob), (1, test_settings.num_classes))[]
print("关系是:")
#print(prob)
top3_id = prob.argsort()[-3:][::-1]
for n, rel_id in enumerate(top3_id):
print("No." + str(n+1) + ": " + id2relation[rel_id] + ", Probability is " + str(prob[rel_id]))
完整代码：
链接：https://pan.baidu.com/s/1aY2WOAw9lgG_1I2rk_EPKw
提取码：noyv
